Add your Control Unit

M3-ASF

The kit offers optimum power, with the possibility to work with two handpieces. The cabinet has additional cooling for intensive use. Its qualities: endurance and robustness.

  • Power supply : 230 / 115 V – 50 / 60 Hz
  • DC Output : 32 VDC – 3 .4 A
  • Usable micromotors : E2001
  • Dimention 21.50 X 20 H8

Choose your Micromotor

E2000

  • Speed : 500 to 20 000 rpm
  • Power : 100W to 200W
  • Diameter : 25 mm

Choose your Micro Handpiece

Handpiece rotary 450

450

Quick change. revolution, without stopping the engine. Supplied with collet Ø 2.35 mm. Concentric accuracy guaranteed to 0.03 mm

  • Weight : 82g
  • Dimensions : 91 x 14.5 x 14.5 mm
  • Speed : 2’000 to 20’000 rpm
  • Couple : 24.7 cNm with RS2000
288-800x800

465

Quick change. revolution, without stopping the engine. Supplied with collet Ø 2.35 mm. Concentric accuracy guaranteed to 0.03 mm

  • Weight : 82g
  • Dimensions : 91 x 14.5 x 14.5 mm
  • Speed : 2’000 to 20’000 rpm
  • Couple : 24.7 cNm with RS2000
289-Power torque 7

388

Exchangeable universal collect with key. Supplied with collet Ø 2.35 mm.

  • Weight : 72g Dimensions : 86 x 15 x 15 mm
  • Speed : 2’000 to 20’000 rpm
  • Couple : 24.7 cNm with RS2000
289-Power torque 7

380

Quick exchange chucks with key schnucks diameter 0 to 4.5 mm.

  • Weight : 84g
  • Dimensions : 104 x 15 x 15 mm
  • Speed : 2’000 to 20’000 rpm
  • Couple : 24.7 cNm with RS2000

Choose your Micro Hammer

Hammer handpiece 218C

318 C

Crimper mesh to be mounted screwed on the micromotor for a very high precision and regular impact of strong to medium.

  • Weight : 92g
  • Dimensions : 104 x 11 x 11 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 24.7 cNm with RS2000
Hammer handpiece 218C

318 SP

Hammer to be mounted screwed for a very high precision and regular strike from fine to very fine.

  • Weight : 92g
  • Dimensions : 104 x 11 x 11 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 24.7 cNm with RS2000
Hammer handpiece 218C

318 USP

Hammer to be mounted screwed for a very high precision and regular strike from fine to very very fine.

  • Weight : 92g
  • Dimensions : 104 x 11 x 11 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 24.7 cNm with RS2000

Choose your Micro Files

Handpiece micro-filling 4LC100

4LC050

0.5 mm Micro-Stroke Printer supplied with the universal tool holder for use with ceramic batons and a 10 mm grip. Medium strick.

  • Weight : 80g
  • Dimensions : 99 x 11 x 11 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 24.7 cNm with RS2000
Industrial tools without oil service

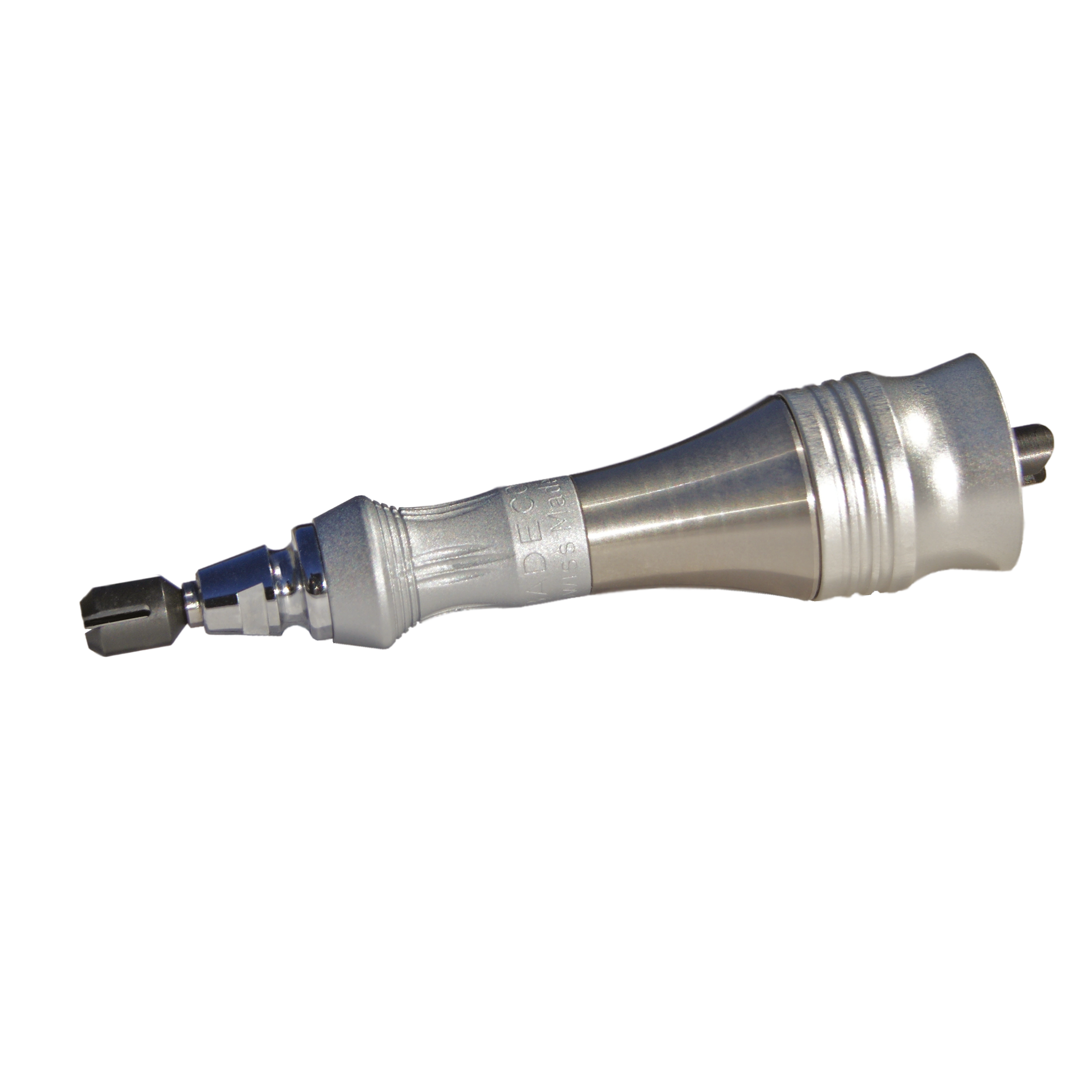

4LC100

1 mm Micro Stroke Printer supplied with the universal tool holder for use with ceramic batons and a 10 cm grip. Fine strick.

  • Weight : 75g
  • Dimensions : 99 x 11 x 11 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 24.7 cNm with RS2000
Industrial tools without oil service

4LC150

1 mm Micro Stroke Printer supplied with the universal tool holder for use with ceramic batons and a 10 cm grip. Ultra fine strick.

  • Weight : 75g
  • Dimensions : 99 x 11 x 11 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 24.7 cNm with RS2000

Choose your Nanomotor

Nanomotor RS3000

RS 3000

  • Speed : 2000 at 20000 tr/min
  • 24V – 3.4A – 70 at 180W
  • Engine couple : 24.7 cNm
  • Diameter : 26.5 mm
  • Length : 73mm

Choose your Micro Handpiece

Handpiece rotary 450

460

Light and precise handpiece delivered with 2.35 mm diameter clamp.

  • Weight : 58g
  • Dimensions : 64 x 13 x 13 mm
  • Speed : 30’000 rpm
  • Couple : 15.5 cNm with RS3000

5B90

HP 90° angled for nanomotor.

Choose your Micro Hammer

Hammer handpiece 318C

518 C

Adjustable 2 level stroke in accordance with motor rotation direction. Supplied with Ø 4 mm point round unhardened. Medium strick.

  • Weight : 94g
  • Dimensions : 100 x 23 x 23 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 15.5 cNm with RS3000
Hammer handpiece 318C

518 SP

Adjustable 2 level stroke in accordance with motor rotation direction. Supplied with Ø 4 mm point round unhardened. Fine strick.

  • Weight : 94g
  • Dimensions : 100 x 23 x 23 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 15.5 cNm with RS3000
Hammer handpiece 318C

518 USP

Adjustable 2 level stroke in accordance with motor rotation direction. Supplied with Ø 4 mm point round unhardened. Ultra fine strick.

  • Weight : 94g
  • Dimensions : 100 x 23 x 23 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 15.5 cNm with RS3000

Choose your Micro Files

Hammer handpiece 318C

5LC050

0.5 mm micro-travel file with 11 mm diameter grip.

  • Weight : 42.8g
  • Dimensions : 68 x 11x 11 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 15.5 cNm with RS3000
Hammer handpiece 318C

5LC100

1 mm micro-travel file with 11 mm diameter grip.

  • Weight : 42.8g
  • Dimensions : 68 x 11 x 11 mm
  • Speed : 500 to 5’000 rpm
  • Couple : 24.7 cNm with RS3000
