High application micromotor for M3 ASF E2000
High application micromotor for M3 ASF E2000

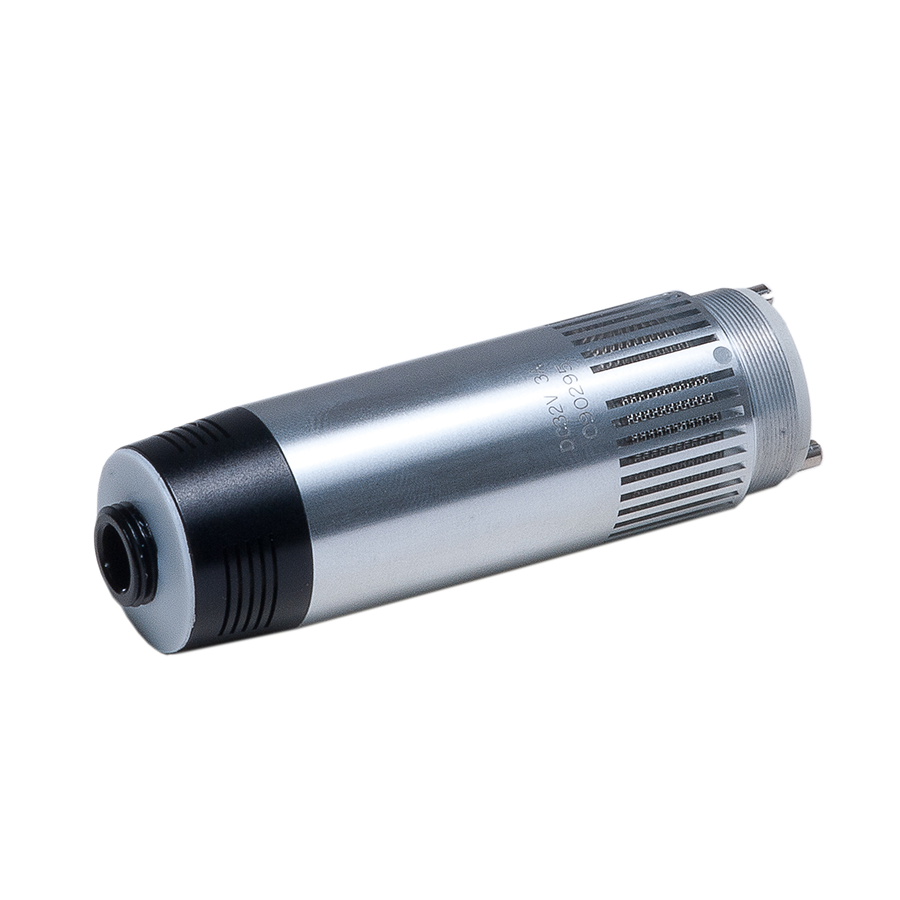

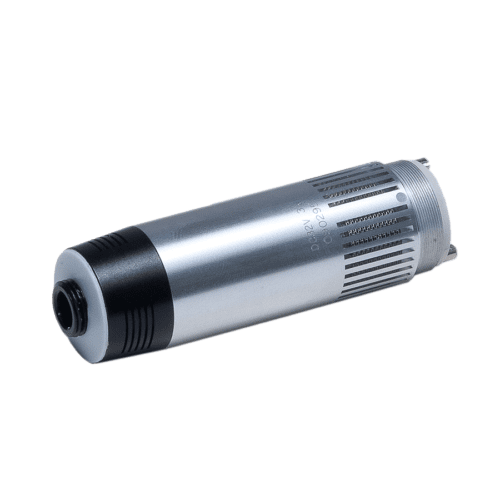

E2000 micromotor

CHF725.00 HT

  • E02000 micromotor for M3ASF micromotor control unit
  • Speed 500 to 20 000 rpm, 3 amps, power 110 to 200W, torque 18.3 cNm DC32 V- 3.4, Ø 25mm, length 83 mm, weight 113g only.
  • Delivered with twisted cable (III 3000), length with handpiece 450 : 180 mm.
  • Torque with handpiece 440-288 and mallets, torque 18.3 cNm



Add to Wishlist
Compare
SKU: E2000 Category:

Description

Technical Specifications:
Used with: EO2000 micromotor and PC750 pedal
Power: 110 to 200 W
Torque / Noise: 18.3 / 56
Voltage: 32 VDC
Amps : 3.4
Speed : 2000 to 20 000
For cabinet : M3ASF
For handpiece : 440 – 288 – 289 – 218C – 218SP – 3LC100 – 3LC050
Dimention Ø x L mm : 25 x 83
Weight only : 205 g

Additional information

Weight 113 g
Dimensions 83 × 25 × 25 mm
Diameter

Power

100 to 200 W
Noise

18.3 / 56 dB
Voltage

32 VDC
Electric current

33 A
Speed
